Electrically Heated Glass

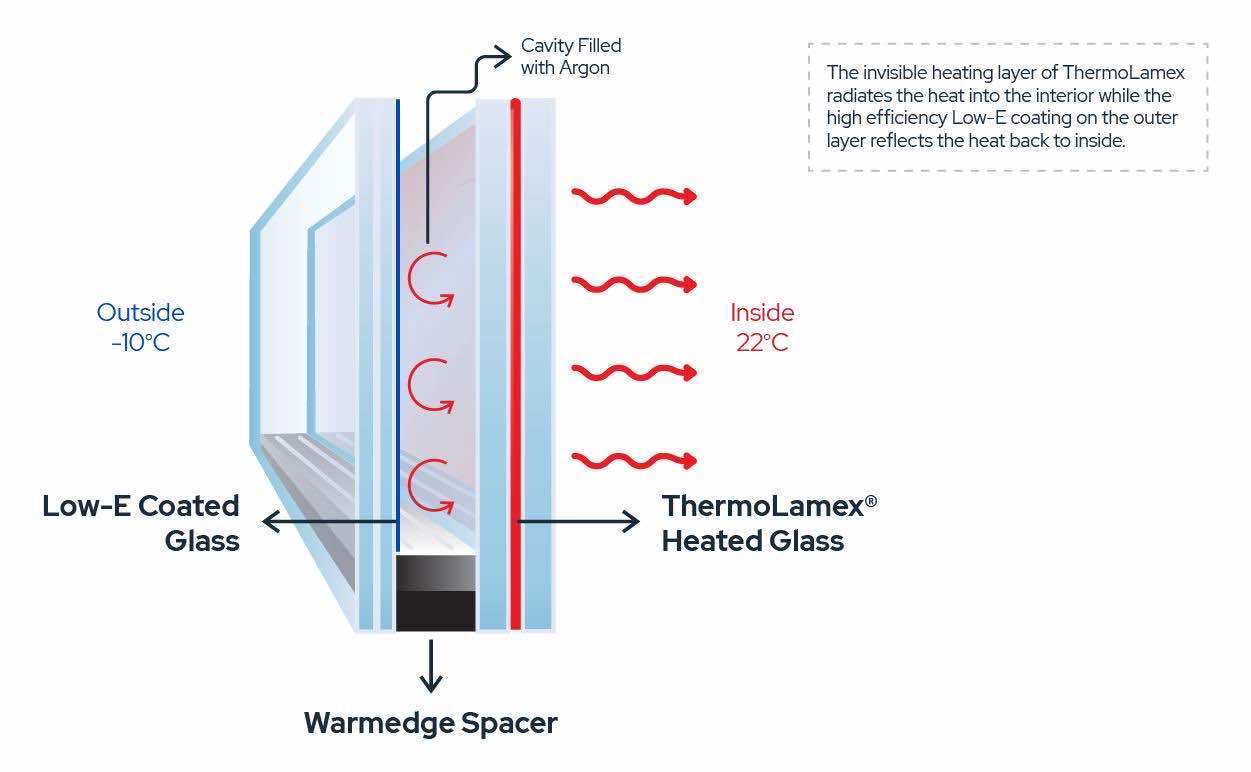

Heating from Transparent Glass

Thermolamex has been designed in 1985 to provide heat from transparent glass. Thermolamex improves the thermal comfort inside a building. Depending on the type of application and the glass structure, Thermolamex can fulfil the following functions:

• Anti-condensation
• Additional room heating
• Main heating
• Snow melting



Why Thermolamex Headet Glass?

• Your Thermolamex window panes will guarantee comfortable temperatures in your rooms.
• No steam, no snow will block your view of the environment
• Consumes low energy and does not require any maintenance
• Thermolamex is compatible with most types of profiles-PVC, aluminium, wood, etc.
• Thermolamex is supplied together with all accessories necessary for its installation.
• Proven reliability since 1985
• Using Thermolamex in glazing units, you can combine its functionality with other products and solutions like,

+Double/tripple glazing
+Thermal or chemical tempering
+Laminating
+Soft or Hard Low-E-coatings
+Shaped irregular geometries
+Curve (Standart or Spherical)
+Printing, etching or anti-slip



Specification

Dimension Max: 7000 x 3210 mm
Min: 50 x 50 mm
Light transmission 0% - 88%
Connection voltage 12 Volt - 440 Volt
Heating Power between 0.5 - 30 W/dm2
Power of the
anti-condensation function
50 - 150 WATT/m2
Power of the thermal comfort function 80 - 250 WATT/m2
Power of the heating function 100 - 300 WATT/m2
Power of the snow melting function 350 - 600 WATT/m2
Temperature of glass surface From 200C to max. 700C

Thermolamex® can be two different form,
Thermolamex® C : Heating by transparent conductive layer
Thermolamex® W : Heating by invisible conductive wires
The engireers of BCE® will advice for the optimum heating solution



Specification



Thermolamex® is consistent with the following standarts:

• EN 1279 - Double glass units
• EN 1096 - Coated glass
• EN 12150 - Thermally toughened safety glass
• EN 14449 - Laminated glass and laminated safety glass.

Related Projects
Lakhta Center
Lakhta Center
Nif Winery
Nif Winery
Private Residence
Private Residence
Private Residence Heated Windows
Private Residence Heated Windows

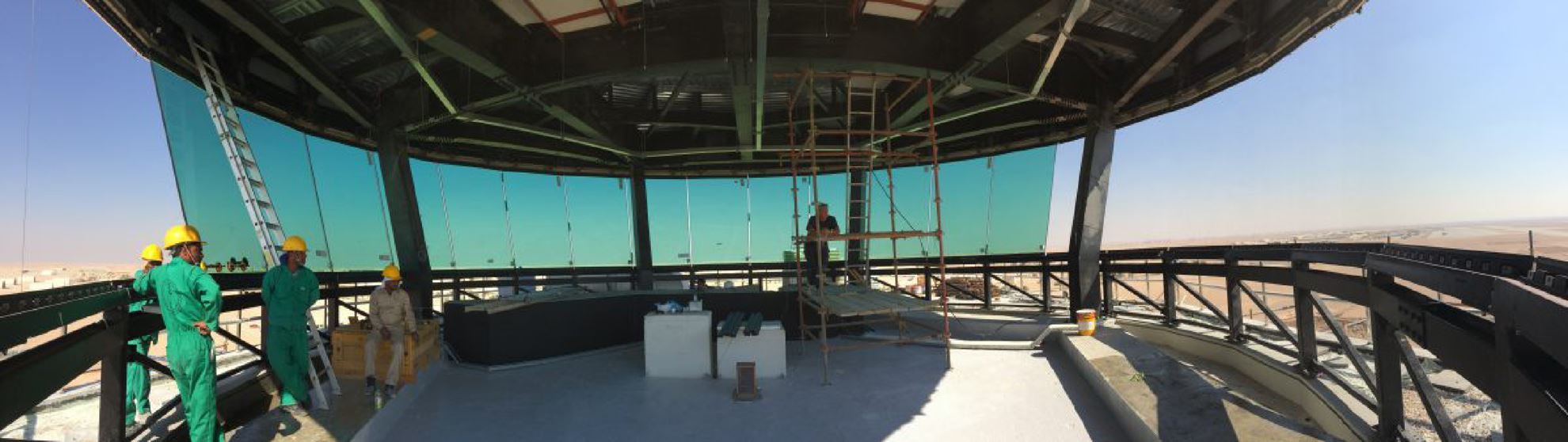

Rafo Oman
Rafo Oman
Towerview Istanbul
Towerview Istanbul
Towerview Manchester
Towerview Manchester
Towerview Muscat
Towerview Muscat

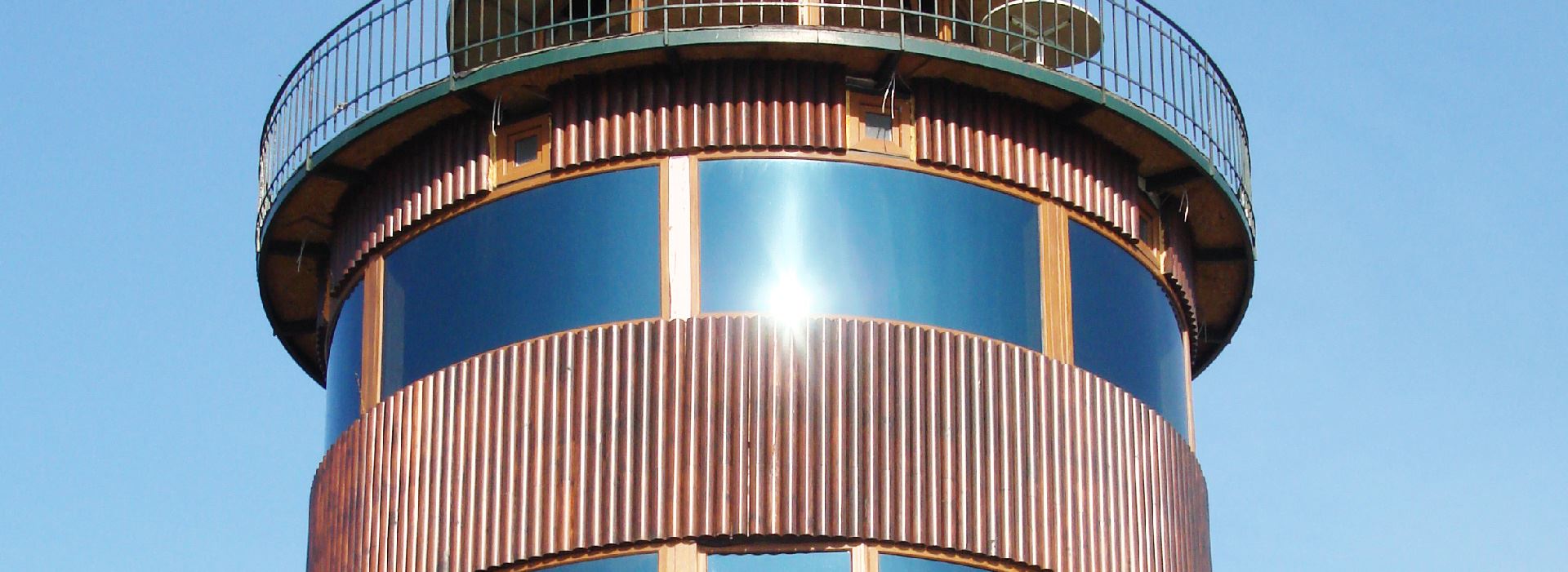

Firewatch Tower
