BestCurve®
Architectural Solutions
Curved Architectural Glass
Ordinary glass forming and processing technologies have many shortcomings when it comes to satisfying increasingly complex demands and expectations of the modern architectural designs. In order to satisfy the needs of the most demanding projects, BCE has developed and patented its BestCurve® Glass Bending Technology.

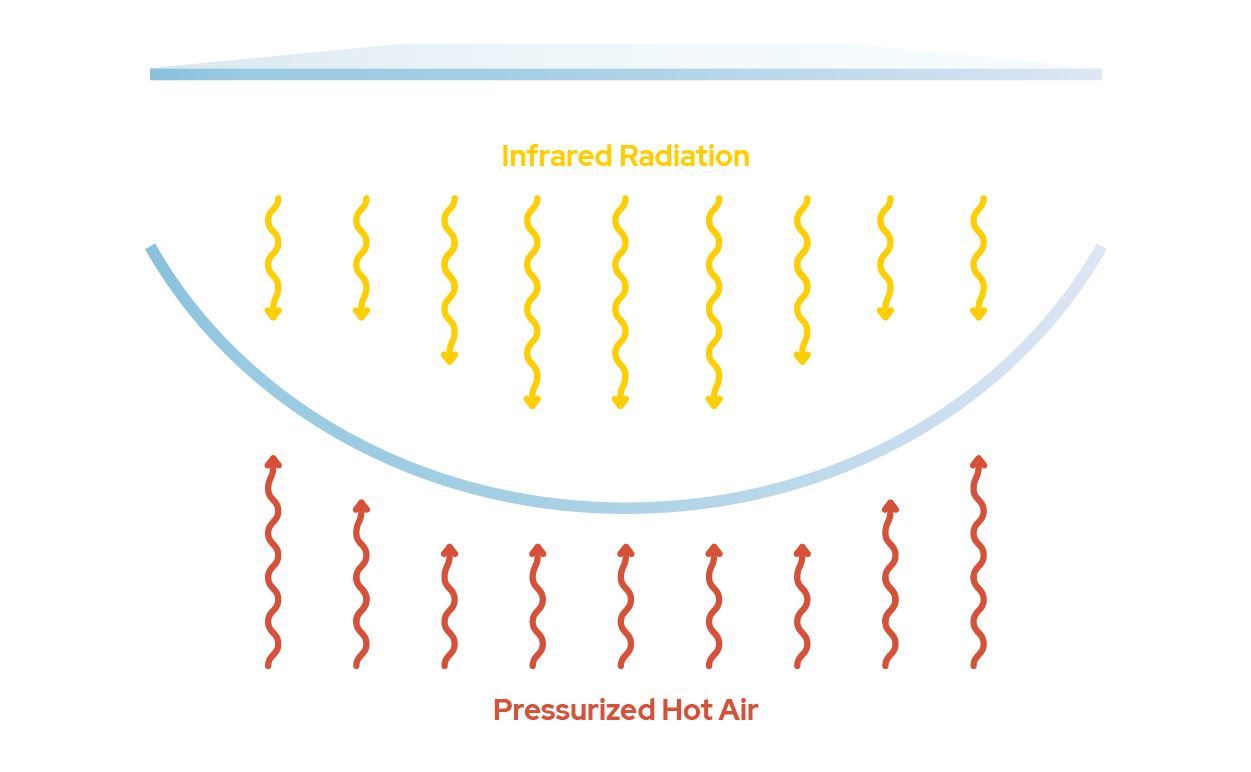

The main principle of the BestCurve® is to prevent any part of the mould from touching the glass while the bending process occurs. This is achieved while bending is carried out at a high temperature and in a computer-controlled concentration of thermal radiation on deep curves.
BestCurve® enables BCE to produce the most complex curved glass panels with outstanding optical properties even for extra-large dimensions.
- From single radius to organic complex geometries.
Almost Any 3D shape is possible - World's Deepest Curved Glass is possible thanks to BestCurve.
Upto 2100 mm of bending depth with maximum glass size of 7000 x 3210 mm - One of the largest hot glass bending capacity with 14 bending furnaces.
Furnaces are suitable for bending soft/magnetronic coated glass
| Thickness | Min. Radius |
|---|---|
| 3 - 6 mm | 5 - 30 mm |
| 8 - 10 mm | 50 - 80 mm |
| 12 - 15 mm | 120 - 150 mm |
Curved Architectural Glass can be produced in numerous capabilites
- Laminated with any interlayer up to 80 mm
- Double/Triple Glazed
- Thermal Tempered Glass
- Chemically Tempered Glass
- Hard/Pyrolithic Coated Glass
- Soft/Magnetron Low-E-Coated Glass
- Any 2D or 3D Design
- Electrically Heated Glass
- Intima Switchable LCD Glass
- Printing and Etching
- Any Edge Working
- Armoured Security Glass
