ArmoLamex® High Security Glass Solutions

Passive defensive technologies have incresing importance against rapidly developing ammunition technologies and more orginized hostile attacks. ArmoLamex® High Securtiy Products are the outcome of BCE's 40 years of manufacturing experience and proven quality.

ArmoLamex® is your one-stop solution against all security threats.



Armolamex® Attack
Armoured Glass Against Manual Attack (EN 356)

Armolamex® Attack is a laminated attack-resistant glass solution – consist of a multi-layer lamination of various interlayer films and glass panes resisting manual attacks, forced intrusion and escape.

The main purpose of Attack-resistant glass systems is to protect interiors against vandalism or delay an attempted intrusion or extrusion long enough for the police or security services to arrive on the scene.

Categories of Threat
-Resistance classes from P6B to P8B
-Certified to EN 356
-Thin and highly transparent glass build-up
-Longest Product Warranty
-Available as insulated glazing
-Curved armoured glass is possible
-Countless combinations possible
-Largest glass dimensions

Armolamex® Attack Dimension

Maximum Dimensions
3210 x 7000mm

- Larger sizes available upon request

Armolamex® Bullet
Bullet Resistant Glass (EN 1063)

Armolamex® Attack is a laminated bullet-resistant glass solution consist of a multi-layer lamination of special interlayer films and strengthened glass panes resisting different classes of handgun, rifle, shot-gun and AK-47 assault rifle munitions.

Categories of Threat
-Covering bullet-resistance classes BR1 to BR7
-Certified to EN 1063
-Withstands shot-gun classes SG1 and SG2
-Splintering (S) and non-splintering (NS) options
-Thin and highly transparent glass build-up
-Curved armoured glass is possible
-Vehicle applications are possible
-Available as insulated glazing
-Countless multifunctional options
-Largest glass dimensions

Armolamex® Bullet Dimensions

Maximum Dimensions
3210 x 7000mm

- Larger sizes available upon request

Armolamex® Blast
Blast Resistance (EN 13541)

Armolamex® Blast is a laminated blast-resistant glass solution consist of lamination of special interlayer films and strengthened glass panes resisting blast waves of different amounts of explosive materials. This highly-engineered glass solution stays in its frame by flexibly giving in when struck by a blast wave.

Categories of Threat
-Certified to EN 13541
-Covering blast-resistance classification ER1 to ER4
-Thin and highly transparent glass build-up
-Available as insulated glazing
-Countless multifunctional options
-Largest glass dimensions

Armolamex® Bullet Dimensions

Maximum Dimensions
3210 x 7000mm

- Larger sizes available upon request

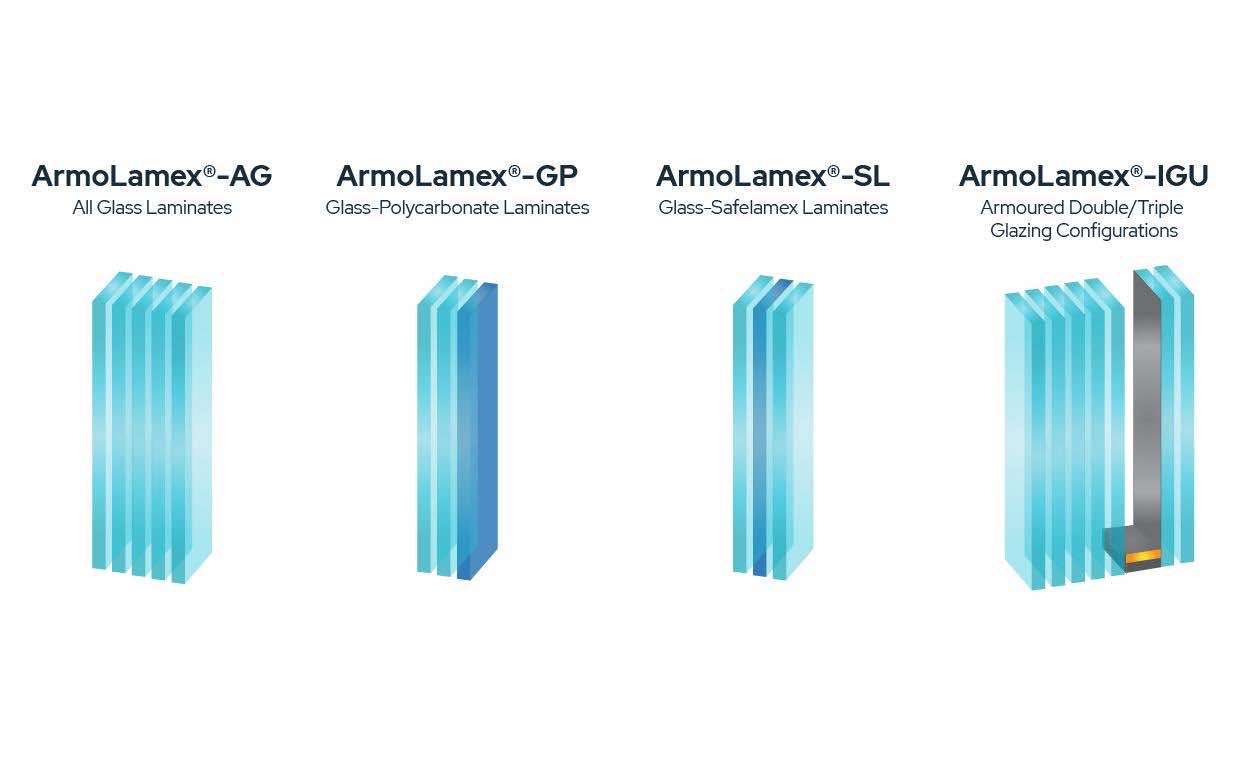

SECURITY GLASS TECHNOLOGIES

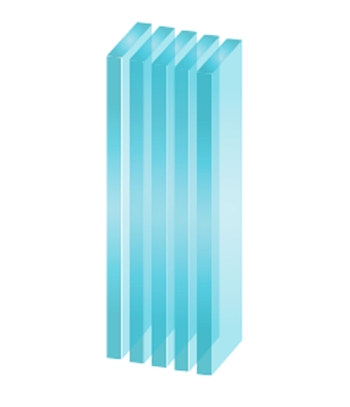

Armolamex - AG All Glass Laminates

Armolamex-AG is laminated armoured glass solution. Such glass products consist of a multi-layer lamination of various interlayer films and glass panes depending on the resistance class. These layers are laminated under great pressure and heat to ensure their bonding when shot at by a bullet. With the non-splintering option there is less risk of injury to people on the safe side of the glass under attack.

Bullet Resistance: BR1-BR7 & SG1-SG2

• Certified to EN 1063
• Dimensions of up to 6000x3210 mm

Attack Resistance: P6B/P7B/P8B

• Available as splintering (S) and non-splintering(NS)
• Countless multifunctional options

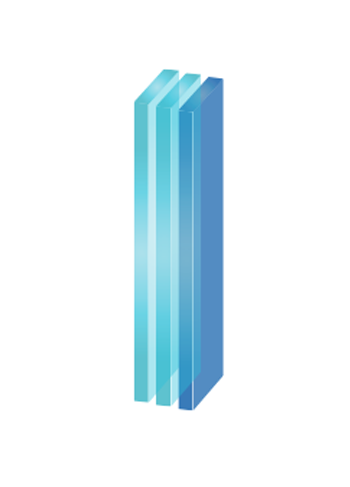

Armolamex - GP Glass - Polycarbonate Laminates

Armolamex-GP offers the same level of bullet resistance as other types of clear security laminates with a weight reduction in thickness of up to 40% and in weight of up to 50% compared to the equivalent bullet-resistant Armolamex-AG variant. Moreover, it provides high level of light transmission and better sight. This is achieved by using polycarbonate(PC)within the laminated security glass composition. It is only available as non-splintering option to reduce the risk of injury to people on the safe side of the glass under attack.

Bullet Resistance: BR1-BR7 & SG1-SG2

• Stronger, lighter and thinner due to polycarbonate
• Higher light transmission due to its thiness
• Sizes available of up to 2900 mm height

Attack Resistance: P6B/P7B/P8B

• Certified to EN 1063
• Available as non-splintering(NS)
• Countless multifunctional options

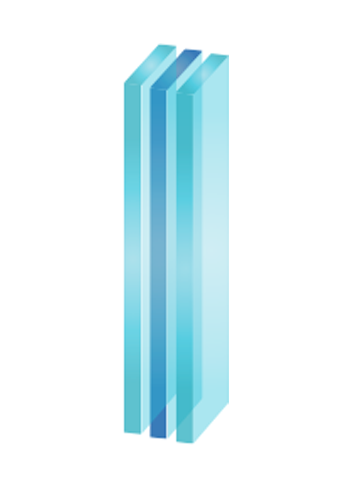

Armolamex - SL Glass - Safelamex Laminates

Armolamex-SL made of several layers of float glass laminated by BCE's Safelamex interlayer.BCE Safelamex interlayer is much less vulnerable to moisture exposure or yellowing over time.

Bullet Resistance: BR1-BR7 & SG1-SG2

• Stronger, lighter and thinner due to Safelamex interlayer
• Higher light transmission due to its thinnes
• Sizes available of up to 6000x2700 mm
• Certified to EN 1063
• Available as splintering(S) and non-splintering(NS)
• Countless multifunctional options

Attack Resistance: P6B/P7B/P8B

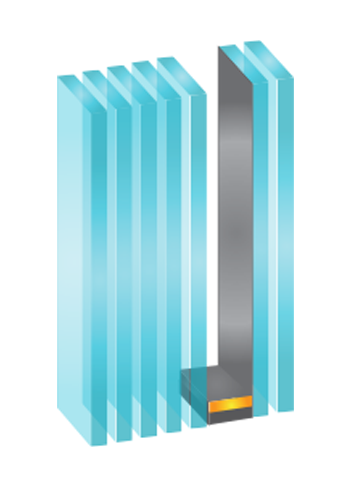

Armolamex - IGU Armoured Double/Triple Glazing Configurations

All our armoured glass products can be processed into double-and triple glazing configuration, and can be combined with a broad range of soft or hard coatings.This allows to achieve optimal results both in low-e thermal insulation and solar control.

Bullet Resistance: BR1-BR7 & SG1-SG2

• Comfortable and pleasant environment
• Certified to EN 1063
• Countless multifunctional options
• Available in all Low-E coatings
• Sustainable by reducing the energy consumption
• Available as splintering(S) and non-splintering(NS)

Attack Resistance: P6B/P7B/P8B

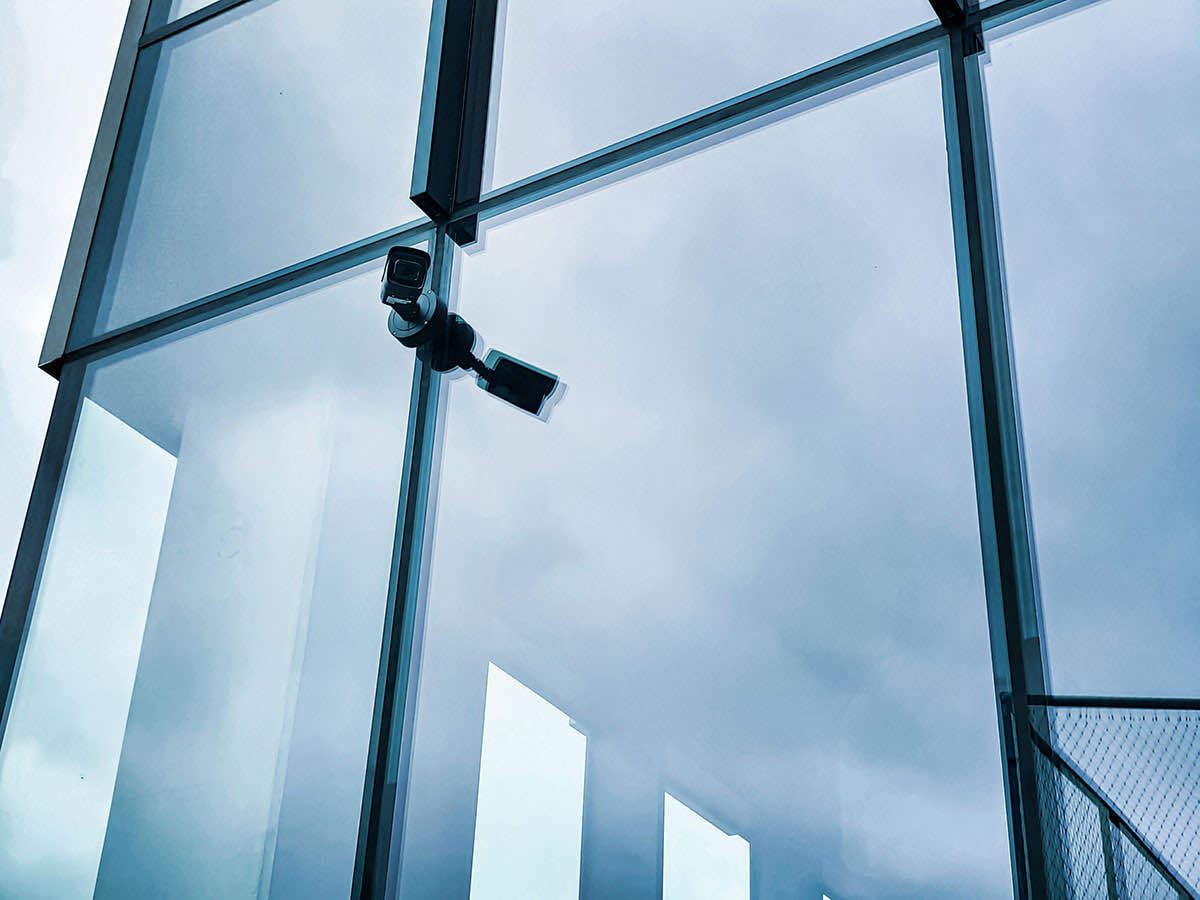

MULTIFUNCTIONAL ARMOURED GLASS

You can add numerous features to your Armolamex armoured glass solution

Projects
+Heating Function
+Intima Switchable Glass
+Ultra Clear Glass
+Alarm
+Noise Control
+Integrated Screens
+Printing/Coloring
+Bending
+Chemical Toughening
+Edge Protecting
+Climate Control
+Self Cleaning
+Armoured Steel Frames

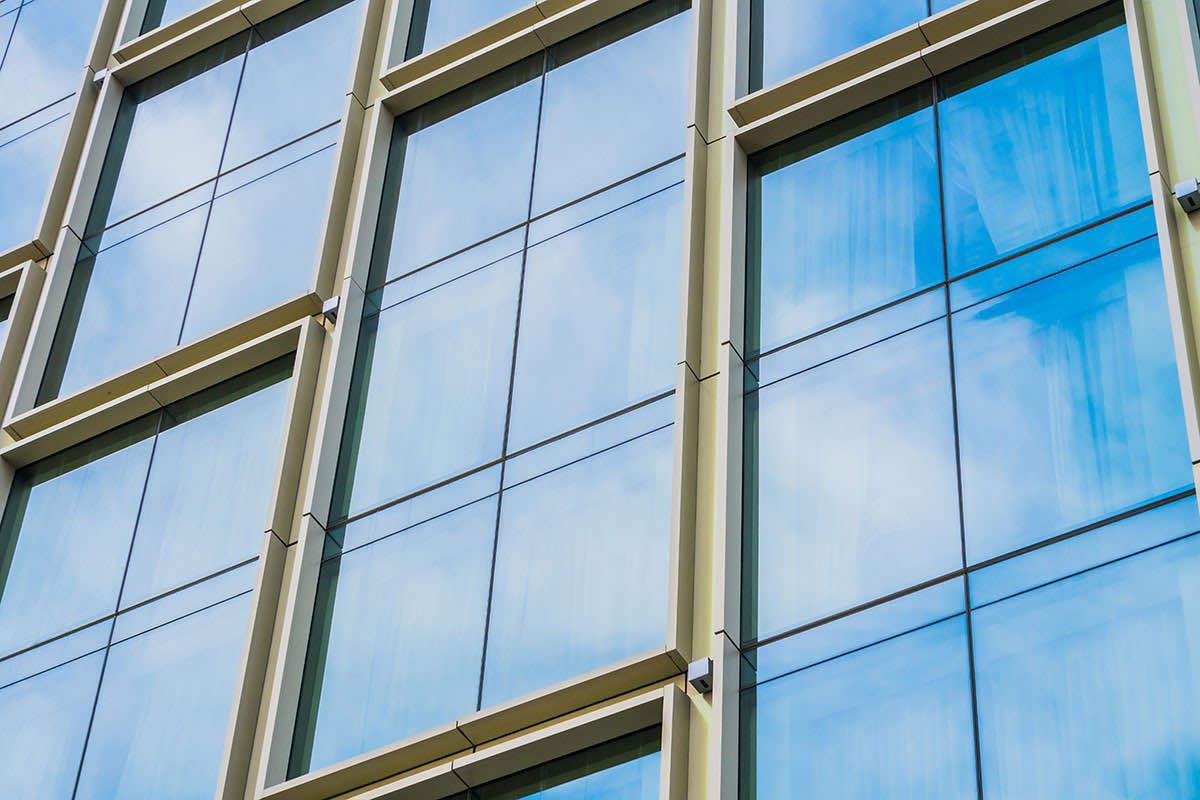

Armoured Framing

All glazing options need a specific framing system for the optimum solution. Armoured sliding window frames built from special armoured steel for armoured projects, specially designed insulating frames for heated glass or double curved aluminium profiles suited for large sized double curved glasses are some of the examples of nonstandart custom frames that must be designed and produced for every specific project. BCE hold it's reputation as one-stop-partner by supporting our clients in every step of their project including the framing systems. BCE offer advice, design and produce custom frames and windows for your specific project.
